How Much Concrete for a 16x16x36 Footing?

How Much Concrete for a 16x16x36 Footing?

16" × 16" × 36" square footing: 5.3333 ft³ (0.1975 yd³), with exact bag counts and a 10% planning example.

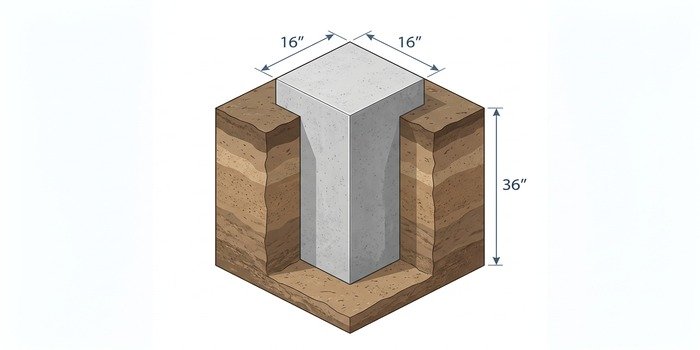

A 16" × 16" × 36" square footing contains 5.3333 ft³ (0.1975 yd³) of concrete before an allowance for excavation variation or spillage. Its 16" × 16" square base has a 1.78 ft² footprint; increasing depth changes the quantity without changing that base area.

For one footing, the bag count is significant enough to plan mixing cycles and handling before digging; repeat footings increase the batch total quickly. At 36 inches deep, confirm the specified bearing level, frost exposure, and excavation stability rather than assuming a deeper hole automatically meets code. Footing thickness, soil bearing, supported loads and reinforcement must come from the project design or local authority—not from the bag count.

Quick Answer

One 16" × 16" × 36" footing: 5.3333 ft³ / 0.1975 yd³ before waste. With a 10% example allowance, plan for 5.8667 ft³ / 0.2173 yd³. This allowance is a planning scenario, not a universal requirement.

Without waste: 18 × 40 lb, 12 × 60 lb, or 9 × 80 lb bags. With 10%: 20 × 40 lb, 14 × 60 lb, or 10 × 80 lb bags. Assumed mixed yields: 0.30/0.45/0.60 ft³ per 40/60/80 lb bag; always check the chosen product label.

How to Use This Footing Estimate

Use these steps to plan quantities for the 16" × 16" × 36" footing; they do not replace an approved structural design.

  1. Verify the design: confirm that a 16" × 16" × 36" footing is specified for the supported loads, soil bearing and local frost/depth rules. Locate underground utilities before excavation.
  2. Measure the concrete cavity: check clear internal dimensions of 16" long × 16" wide × 36" deep; account for any bell, extra base or irregular excavation separately.
  3. Estimate the concrete: one footing needs 5.3333 ft³ before waste; a 10% example gives 5.8667 ft³. Multiply by the actual number of identical footings.
  4. Choose delivery: for one footing with 10% extra, compare 20 40 lb, 14 60 lb, or 10 80 lb bags with ready-mix. Check the published yield of the exact bagged product.
  5. Plan the placement: follow the approved excavation, bearing preparation, formwork, reinforcement and anchorage details. Organize access, equipment and enough help for continuous placement.
  6. Mix, place and cure: follow the concrete product instructions for water, mixing, placement, consolidation and curing; do not treat a nominal curing age as automatic structural approval.

Formula

Rectangular or square footing volume: length × width × depth, with all three measurements in the same units. To calculate directly from inches, divide cubic inches by 1,728.

In cubic feet: (16 × 16 × 36) ÷ 1,728 = 5.3333 ft³. In cubic yards: the unrounded ft³ result ÷ 27 = 0.1975 yd³. Values shown here are rounded for display; bag counts use full precision.

10% planning example: base volume × 1.10 = 5.8667 ft³, or 0.2173 yd³. Because the allowance is applied to volume before dividing by bag yield, it is not the same as multiplying a previously rounded whole-bag count.

Worked Example

One 16" × 16" × 36" footing: 5.3333 ft³ (0.1975 yd³). With a 10% example allowance, 5.8667 ft³ (0.2173 yd³), equivalent to 20 × 40 lb, 14 × 60 lb, or 10 × 80 lb bags based on standard yields.

Three identical footings: 3 × 5.3333 = 16 ft³ (0.5926 yd³) before waste. Add 10% to the combined volume: 17.6 ft³ (0.6519 yd³), then round up once to 59 40 lb, 40 60 lb, or 30 80 lb bags. This can differ from rounding each footing separately.

Bag Count Estimate

  • 10 bags of 80 lb concrete mix
  • 14 bags of 60 lb concrete mix
  • 20 bags of 40 lb concrete mix

Always verify the actual yield on the product label before buying materials.

Bag Counts by Waste Buffer for 16" x 16" x 36"

These buffers are examples, not a universal recommendation. The right percentage depends on excavation accuracy, how precisely you measured, soil and ground conditions, and placement losses such as spillage or over-dig. This page uses 10% as its own planning figure.

Buffer Volume (ft³) 80 lb bags 60 lb bags 40 lb bags
No buffer5.3391218
+5% example5.6101319
+10% example5.87101420
+15% example6.13111421

When Bagged Concrete vs Ready-Mix Makes Sense

For one footing, the 10% example requires 10 × 80 lb bags (800 lb of dry mix). Bagged concrete can avoid a small-load delivery arrangement, provided you can handle and mix the material within the planned placement window.

If there are three identical 16" × 16" × 36" footings, the combined volume with the same 10% example is 0.6519 yd³. Order based on the combined measured cavities, not just the single-footing result; confirm truck access and what the supplier charges for short loads. Neither bag count nor material weight establishes the footing’s load-bearing capacity.

Common Uses for This Footing Size

This is a 16" square concrete footprint, so the material calculation applies to a symmetric footing below a post or pier if that geometry is specified on the plans. A square layout is simpler to measure than a non-square pad, but the area is not evidence of structural capacity.

The base area is 1.78 ft² and the concrete volume is 5.3333 ft³. This page is useful for estimating a single cavity, comparing alternate depths, or calculating several identical footings. A 36" depth adds half again as much concrete as the same footprint at 24". That comparison is only about quantity, not a recommendation to make the footing deeper. Soil bearing, reinforcement, supported loads and local construction rules remain separate design checks.

Common Mistakes to Avoid

For this square footing, avoid these estimating and site-planning errors:

  • Confusing a 16" square base with a 16"-diameter round hole; square and circular volumes are different.
  • Ordering bags from a rounded 0.2 yd³ display instead of the precise 16" × 16" × 36" calculation.
  • Adding 10% to the already-rounded bag count instead of applying the example allowance to the concrete volume before rounding up.
  • Assuming that 36 inches of depth automatically satisfies a frost or structural requirement without checking the site and approved plans.
  • Using a generic bag yield without checking the specific manufacturer and mix type.
  • Overlooking bag transport, consistent mixing, consolidation and curing when placing multiple batches.

Frequently Asked Questions

How much concrete is in a 16" × 16" × 36" footing?

A single 16" × 16" × 36" square footing contains 5.3333 ft³ (0.1975 yd³) before waste. With a 10% example allowance, the planning quantity becomes 5.8667 ft³ (0.2173 yd³).

How many bags of concrete are needed for a 16" × 16" × 36" footing?

Without waste: 18 bags of 40 lb, 12 of 60 lb, or 9 of 80 lb. At a 10% example allowance: 20 of 40 lb, 14 of 60 lb, or 10 of 80 lb. These estimates assume 0.30, 0.45 and 0.60 ft³ of yield per respective bag; check the product label.

How much more concrete does a 36-inch depth use than 24 inches?

At the same 16" × 16" footprint, 24" depth uses 3.5556 ft³ and 36" depth uses 5.3333 ft³: 50% more concrete. The required depth is governed by design and site conditions, not material savings.

Is a 16" × 16" × 36" footing deep enough for a deck post?

Not necessarily. A 36" depth does not establish adequacy without the local frost depth, soil bearing, load and applicable footing rules. Follow the engineered or approved plan; the figures on this page are volume and bag-count estimates only.

Keep Planning Your Concrete Project

Use the calculator, compare footing pages, and keep your estimate practical before you buy materials.

Disclaimer: This page provides planning estimates only. Actual concrete needs vary with excavation accuracy, site conditions, local code requirements, bag yield, and supplier guidance. Always verify measurements before buying materials, and consult a qualified professional for structural or code-sensitive work.
